CS0700 and CS0650
Super Sterasyl Ceramic (W9121207)
Doulton Water Filter Candle / Element/Cartridge:
Designed for Gravity Fed Drinking Water Filters such as the GSS402
(W9361160) Super Sterasyl Ceramic Doulton water filter candles are two stage cleanable filtration candles, designed to remove suspended solids, pathogenic bacteria, chlorine, organic chemicals and hydrogen sulphide. In addition they will dramatically improve taste and reduce odors.
 |
 |
 |
 |

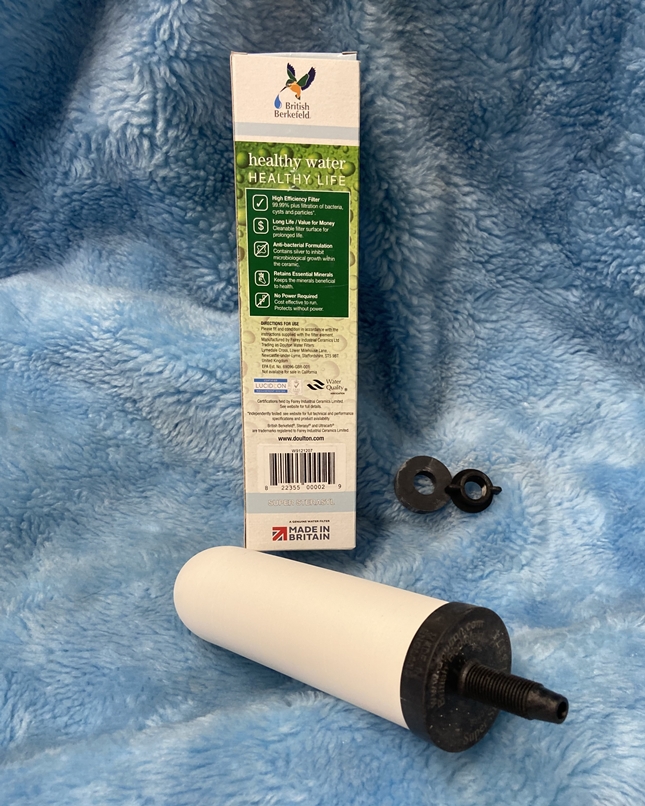

| Doulton CS0700 Super Sterasyl (CS0700 is only 7in. and CS0650 is 6.5 inches) |
Cutaway showing Bacteria Trapped on Outer Wall of the Doulton Ceramic | Simple Cleaning | |
| General Specifications for CS0700 /0650 Super Sterasyl Doulton Water Filter candles (W9121207): | |||
| Maximum Working Pressure | NA | ||
| Maximum Working Temperature | 100 F | ||
| Minimum Working Temperature | 40 F | ||
| Recommended Flow Rate | .Gravity | ||
| Rated Life (stand alone) | 500 USG gallons | ||
| Recommended Cleaning Frequency | Only on flow rate reduction | ||
CS0700 Super Sterasyl Ceramic Doulton Water Filter Candle / Cartridge Removal Efficiencies
P= Purification. R= Reduction> 95%. F= Effective Filtration>90%
| Contaminants | Removal | General Description -Rated life 500 USG |
| Bacteria | P | Application: These cartridges are designed for use with
gravity fed systems.
Strengths: 100% rejection of bacteria, cysts and effective depth filtration of particulates >.5 micron. This system also provides excellent rejection of Chlorine and VOC's. Candles are easily cleaned and require no tools to service.
These statistics meet or exceed the NSF certification requirements under NSF International Standard 42 and 53.  |
| Cysts | P | |
| Taste | F | |
| Odors | F | |
| Colour | F | |
| Chlorine | R | |
| Herbicides | F | |
| Pesticides | F | |
| Lead | NA | |
| Metals | NA | |
| Fluoride | NA | |
| Nitrates | NA | |
| Arsenic | NA |
| Particulate Efficiency (Dirt etc.) | Rating | |
| Absolute filtration rating | Defined as >99.999% | 0.9 micron |
| Nominal or Effective filtration rating | 99.9% | 0.5-0.8 micron |
| 99.7% | 0.3-0.5m | |
| 98.0% | 0.2-0.3m | |
| % Bacteria removal | E. coli | >99.99% |
| Vibrio Cholera | >99.99% | |
| Shigella | >99.999% | |
| Salmonella Typhii | >99.999% | |
| Klebsiella Terrigena | >99.999% | |
| % live Cyst removal | Cryptosporidium | 100% |
| Giardia | 100% | |
| ISO 9002 Quality Standard |
| National Sanitation Foundation standards 42 and 53 |
| Environmental Protection Agency (EPA) |
| Water Quality Association |
| Department of Health (Toronto, Canada) |
| Spectrum Labs (Minneapolis, USA) |
| Water Research Council (UK) |
| British 5750 Quality Standard |
| England's Water Research council (WRc) Performance Standards |
| California Department of Health |
| Over 50 Independent Laboratories Worldwide |
The following specific removal efficiency testing reports are available: Cryptosporidium Removal, Bacterial (E. Coli) Removal, Particulate Reduction, Cyst and Turbidity Reduction, Chlorine Reduction.
